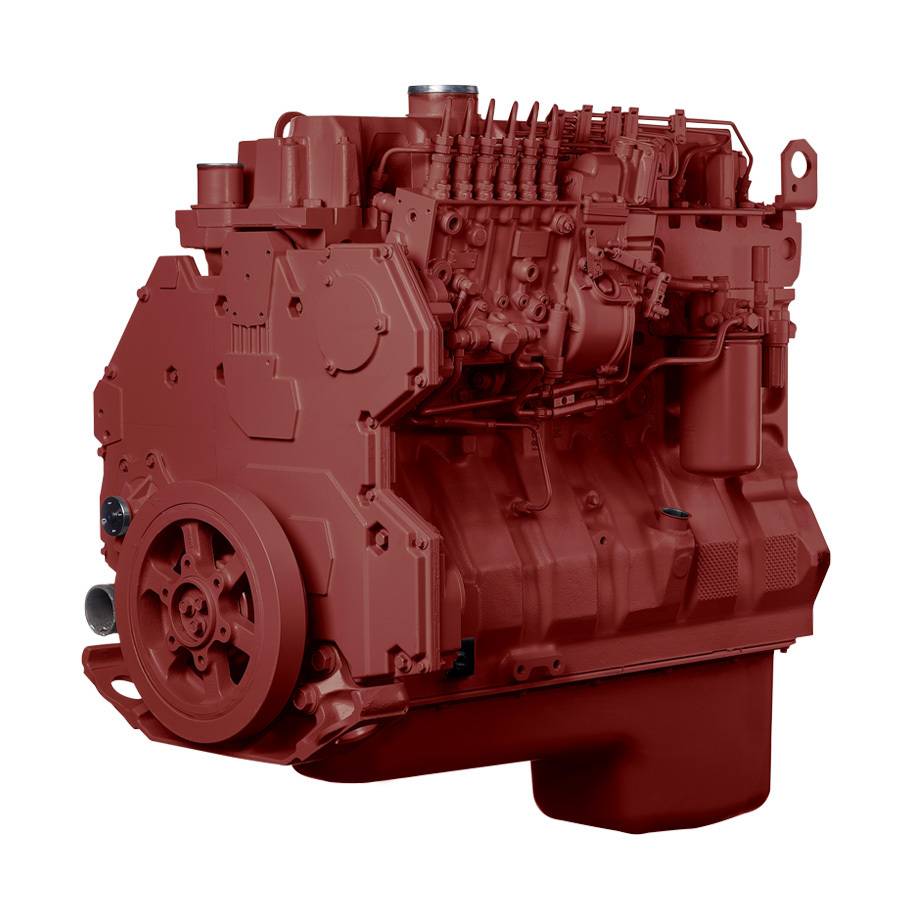

International DT-466 Diesel Engine C & P Series

International DT-466 Diesel Engine C & P Series

C & P have a different Product Bulletin see PDF for details

APPLICATIONS

Reviva’s DT-466 diesel engines are configured for International delivery trucks, garbage trucks, dump trucks, and school buses.

DT-466 B Series

DT-466 C Series

DT-466 P Series through 1999.5

Block Configurations

LONG BLOCK SUPREME INCLUDES:

  • Block
  • Rods
  • Oil cooler
  • Valve cover
  • Water pump (no pulley)
  • Piston/sleeve assemblies
  • Timing gears
  • Front cover & seal
  • Gasket set
  • Thermostat housing
  • Damper & pulley assembly
  • Flywheel housing (no on P models)
  • Crankshaft
  • Oil pan
  • Oil pump
  • Pickup tube
  • Valve train
  • Camshaft
  • Head
  • Oil filter
  • Thermostat
  • Water filter (P only)
  • Front engine Mount (P only)

COMPLETE DROP-IN ENGINE INCLUDES:

ALL PARTS ON THE LONG BLOCK SUPREME PLUS

  • Air crossover tube*
  • Intake manifold**
  • Dipstick guide (lower portion)
  • Complete fuel system (injectors, high & low pressure lines, injection pump, & fuel filter assembly)
  • Turbocharger
  • Exhaust manifolds

*WHERE REQUIRED

**PART OF THE VALVE COVER ON THE P SERIES

ABOUT THE REVIVA DT-466

  • All Reviva engines are assembled in the USA.
  • Reviva replaces 100% of pistons, rings, bearings, bushings, gaskets, and seals.
  • All heads get new valves and are vacuum tested to ensure the quality of the valve job. All heads are pressure tested and upgraded to the latest style valve seal.
  • Reviva grinds 100% of camshaft lobes.
  • All connecting rods are de-magnetized.
  • OEM components are used in injection pumps.
  • Core plugs are 100% stainless steel to avoid corrosion.
  • Blocks, heads, and crankshafts are 100% magnaflux tested to avoid cracked components.
  • Blocks are resurfaced and have counterbores remachined to ensure proper sleeve protrusion and head gasket sealing.
  • Connecting rods have new bushings installed and both large and small ends are remachined to OEM specifications.
  • Crankshaft is checked for size, reground, if necessary, and polished to OEM specifications.

REVIVA’S DYNO TEST

All of Reviva’s Complete Drop-In engines are 100% dyno tested prior to shipment. Computer controls ensure that each engine dyno test is conducted under standard, repeatable settings. Every engine is run through a warm up cycle; three separate segments simulating light, medium, and heavy throttle conditions; maximum torque and horsepower tests; both high and low idle tests; and a black light leak detection test with dyed oil, coolant, and fuel.

WARRANTY COVERAGE

On-Road Complete Drop-In configurations: 2yr/unlimited mileage.*
Long Block configurations: 1 year/unlimited mileage.
Transit Bus Applications: 1 yr/unlimited miles on all configurations.

Some restrictions apply; see limited warranty details or call for more information.
*2nd year long block coverage only.

©2017 Reviva, All Rights Reserved.

Reviva is an independent manufacturer and is not affiliated with Navistar, Ford, Cummins, General Motors, or Caterpillar.

ISSUE: DT466-K
